Active Noggin (NOG) (APC130Hu01)

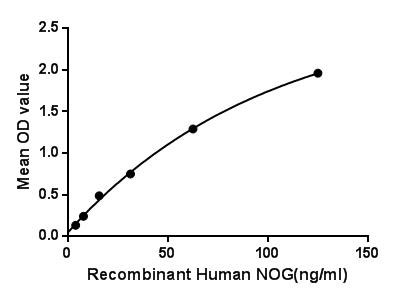

Figure. The binding activity of NOG with CDF5. Noggin, also known as NOG, is a protein that is involved in the development of many body tissues, including nerve tissue, muscles, and bones. Noggin is a signaling molecule that plays an important role in promoting somite patterning in the developing embryo. It is released from the notochord and regulates bone morphogenic protein (BMP4) during development. It also causes formation of the head and other dorsal structures. Besides, Growth Differentiation Factor 5 (GDF5) has been identified as an interactor of NOG, thus a binding ELISA assay was conducted to detect the interaction of recombinant human NOG and recombinant human CDF5. Briefly, NOG were diluted serially in PBS with 0.01% BSA (pH 7.4). Duplicate samples of 100uL were then transferred to CDF5-coated microtiter wells and incubated for 2h at 37℃. Wells were washed with PBST and incubated for 1h with anti-NOG pAb, then aspirated and washed 3 times. After incubation with HRP labelled secondary antibody, wells were aspirated and washed 3 times. With the addition of substrate solution, wells were incubated 15-25 minutes at 37℃. Finally, add 50μL stop solution to the wells and read at 450nm immediately. The binding activity of NOG and CDF5 was shown in Figure 1, and this effect was in a dose dependent manner.

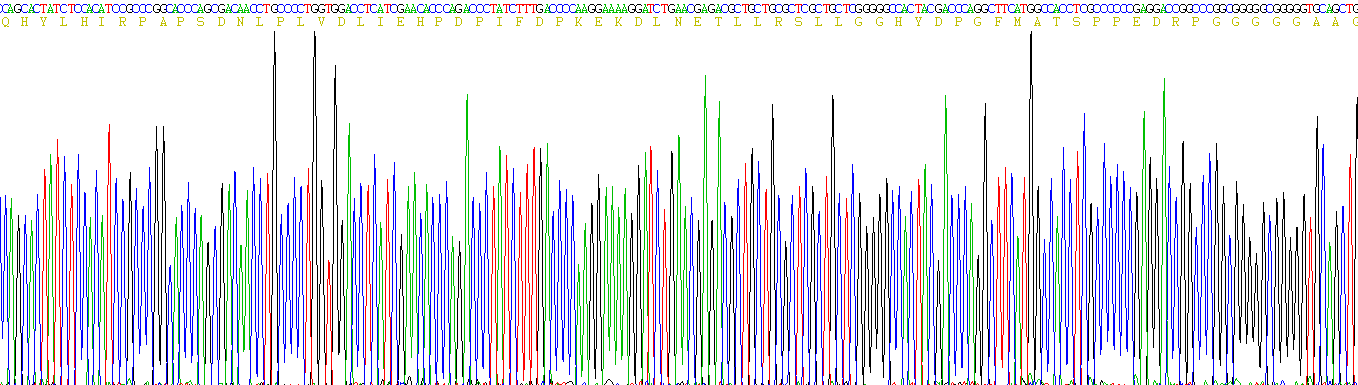

Figure. Gene Sequencing (extract)

Figure. Western Blot

Figure. SDS-PAGE
