CYB561D1 Antibody (AF9050)

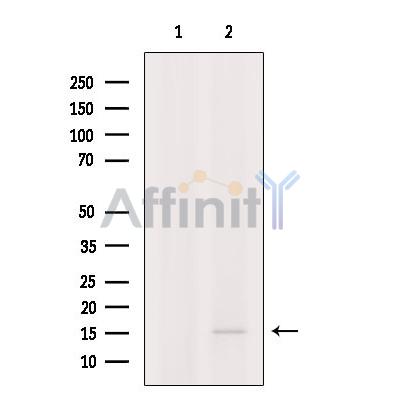

Western blot analysis of extracts from 3T3, using CYB561D1 Antibody. The Lane on the left was treated with blocking peptide. Observed bands: 15 kDa.

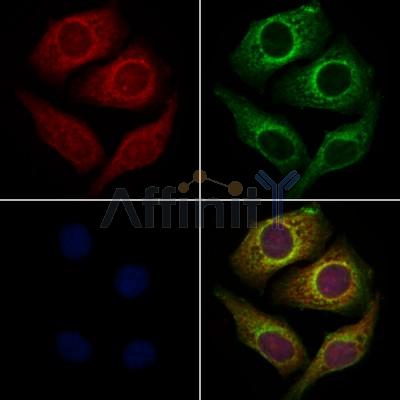

AF9050 staining Hela cells by IF/ICC. The samples were fixed with PFA and permeabilized in 0.1% Triton X-100. Then blocked in 10% serum for 45 minutes at 25ºС. Samples were then incubated with primary Ab (AF9050 1:200) and mouse anti-beta tubulin Ab (T0023 1:200) for 1 hour at 37ºС. An AlexaFluor594 conjugated goat anti-rabbit IgG (H+L) Ab (Red) and an AlexaFluor488 conjugated goat anti-mouse IgG (H+L) Ab (Green) were used as the secondary antibody. The nuclear counter stain is DAPI (blue).
